Overview

• Brand : Henkion
• Power Source : Rechargeable Battery Powered
• Style : RJ45 Network Cable Tester
• Color : Black
• Item Weight : 300 Grams

About this item

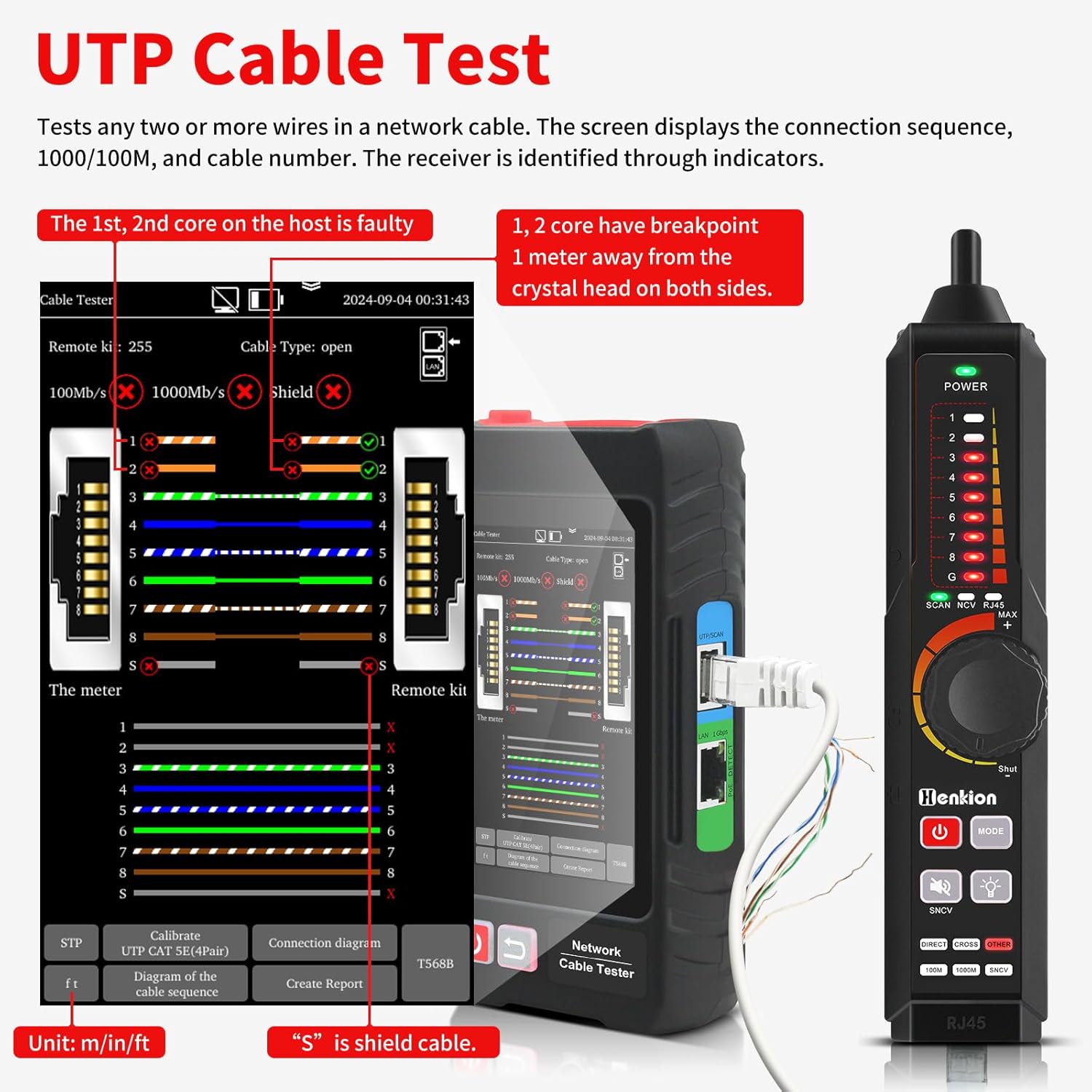

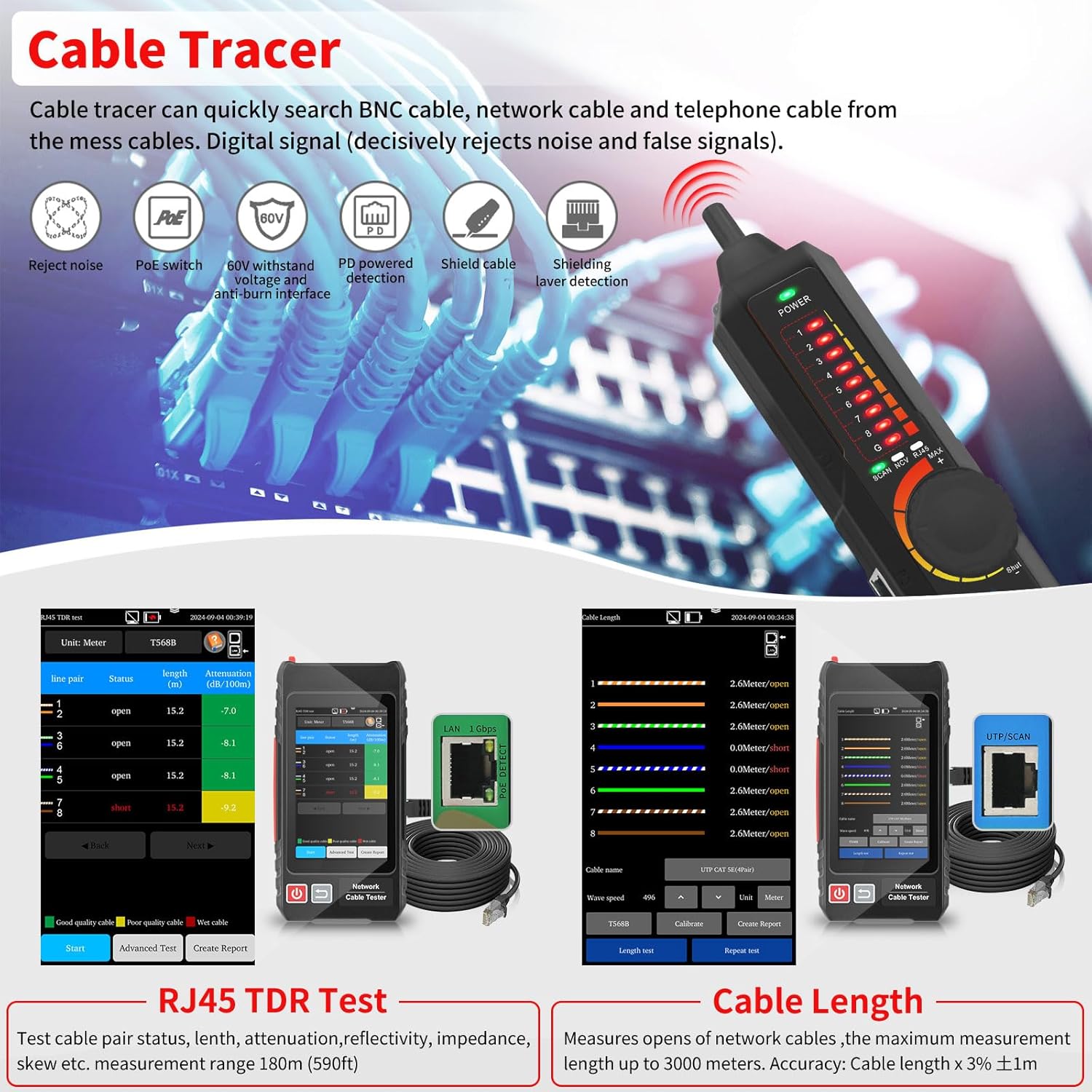

• 【Upgrade Network Cable Tester&Cable Tracer】Advanced UTP cable test,test UTP cable's sequence,type and remote kit,quickly detect the near-end,mid-end and far-end fault point of RJ45 cable connector.Digital signal ethernet cable tracer can quickly find out the target cable(BNC cable,network cable and telephone cable and other various metal) from the mess cables.Decisively rejects noise and false signals,RJ45 tracer and UTP at the same interface,accurately locate the cables to avoid misjudgment.

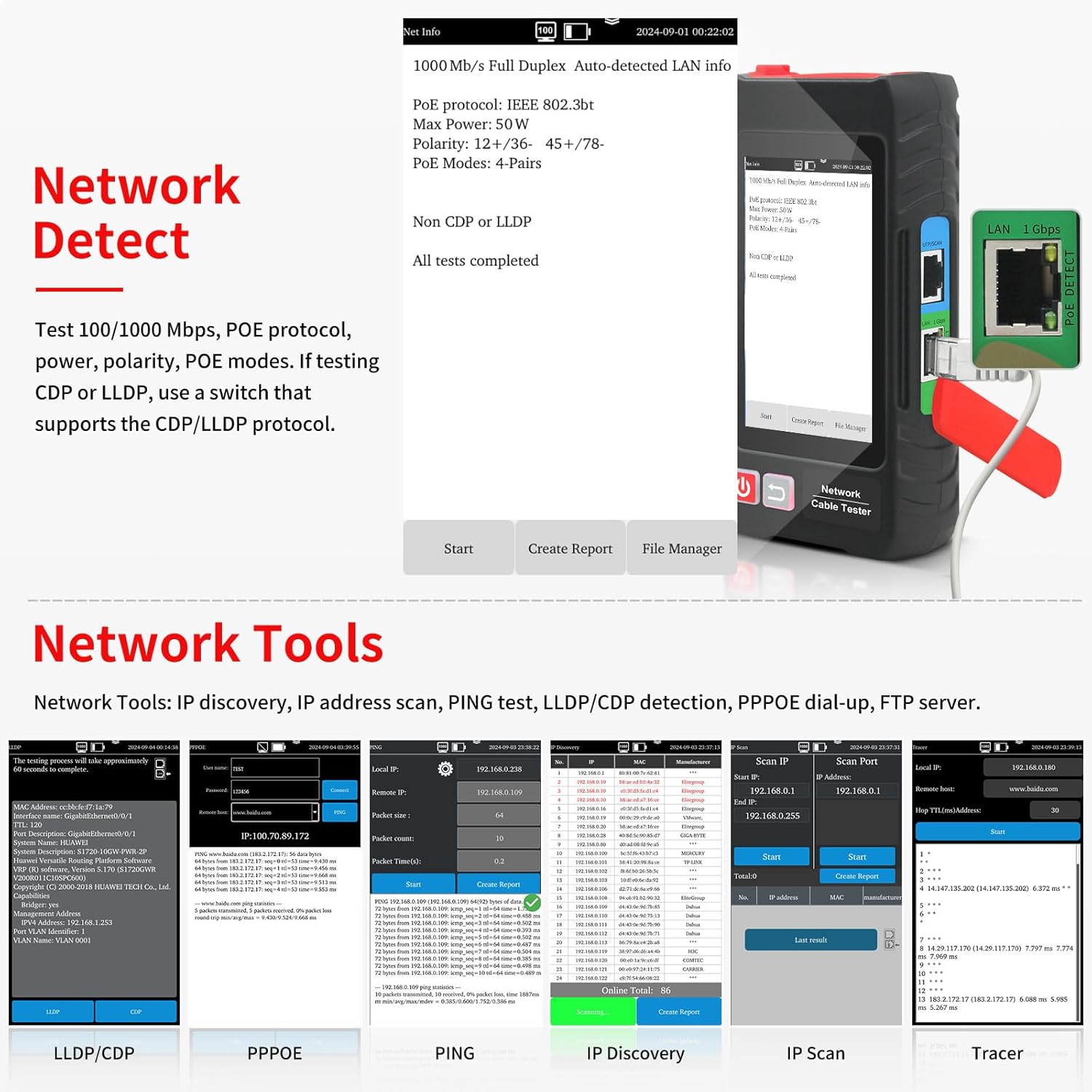

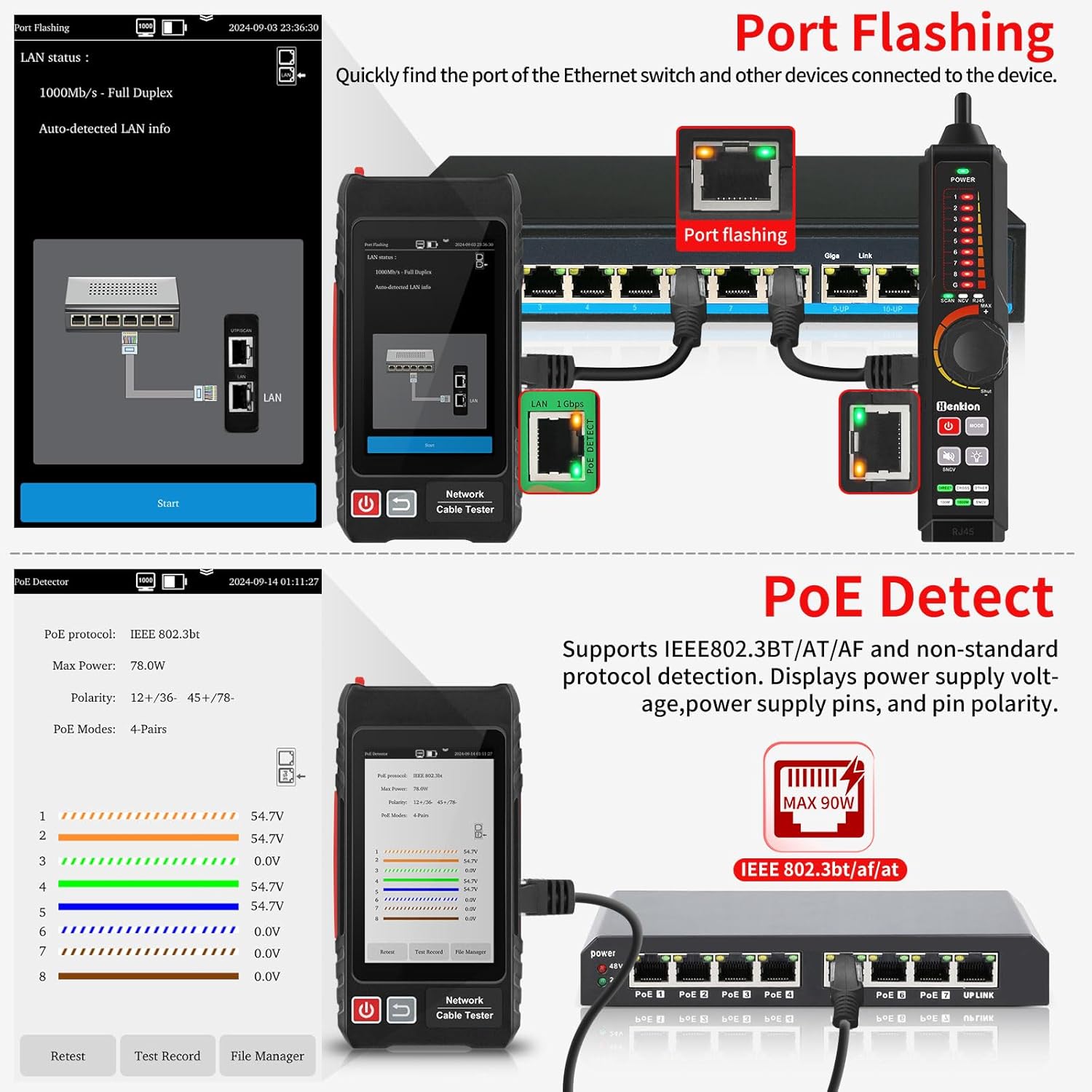

• 【POE++ Detect/Network Tools】Rj45 POE Tester supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity. Furthermore, network tester built-in 1000M network port, A bunch of network tools, such as IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, PPPOE dial-up.
• 【RJ45 TDR Cable Test & Length Measurement】Cable tester is eaily to test cable’s pair status, length, attenuation reflectivity, impedance, skew, and other parameters. Also, you can measure opens of network cables, max measurement length up to 3000 meters. Creating test report.
• 【PD Power Detection & NCV Detection & FTP】PD power test can detect whether the power output of the POE switch is normal, and detect the pins used for power supply. Inductive NCV scan function. Sound and light dual alarms, supporting the distinction between live and neutral wires. The FTP function enables users to copy test report and data via network FTP.

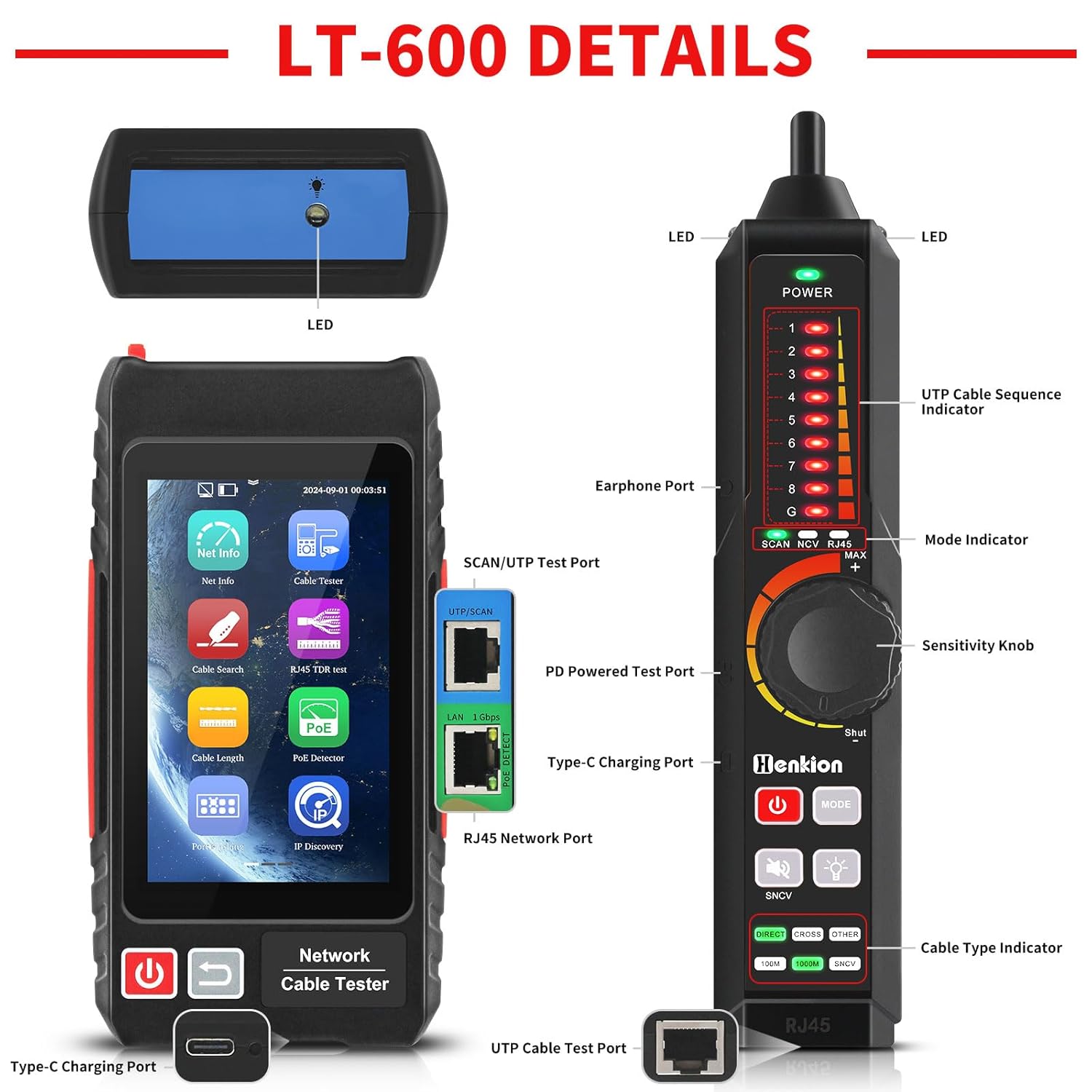

• 【Battery & Service】4 inch IPS touch screen, 800*480 resolution. The emitter and receiver both built-in rechargeable battery, (max 3.7V 4000mAh lithium-ion.)Powerful battery life and you don't need to replace the batteries. Of cause,we will do our best to provide the best service we can, so you don't need to worry about anything.
