Overview

• Brand : WANLUTECH
• Power Source : Battery Powered
• Style : LT-600 series
• Color : black
• Manufacturer : GUANGZHOU WANGLU TECHNOLOGY CO.,LTD

About this item

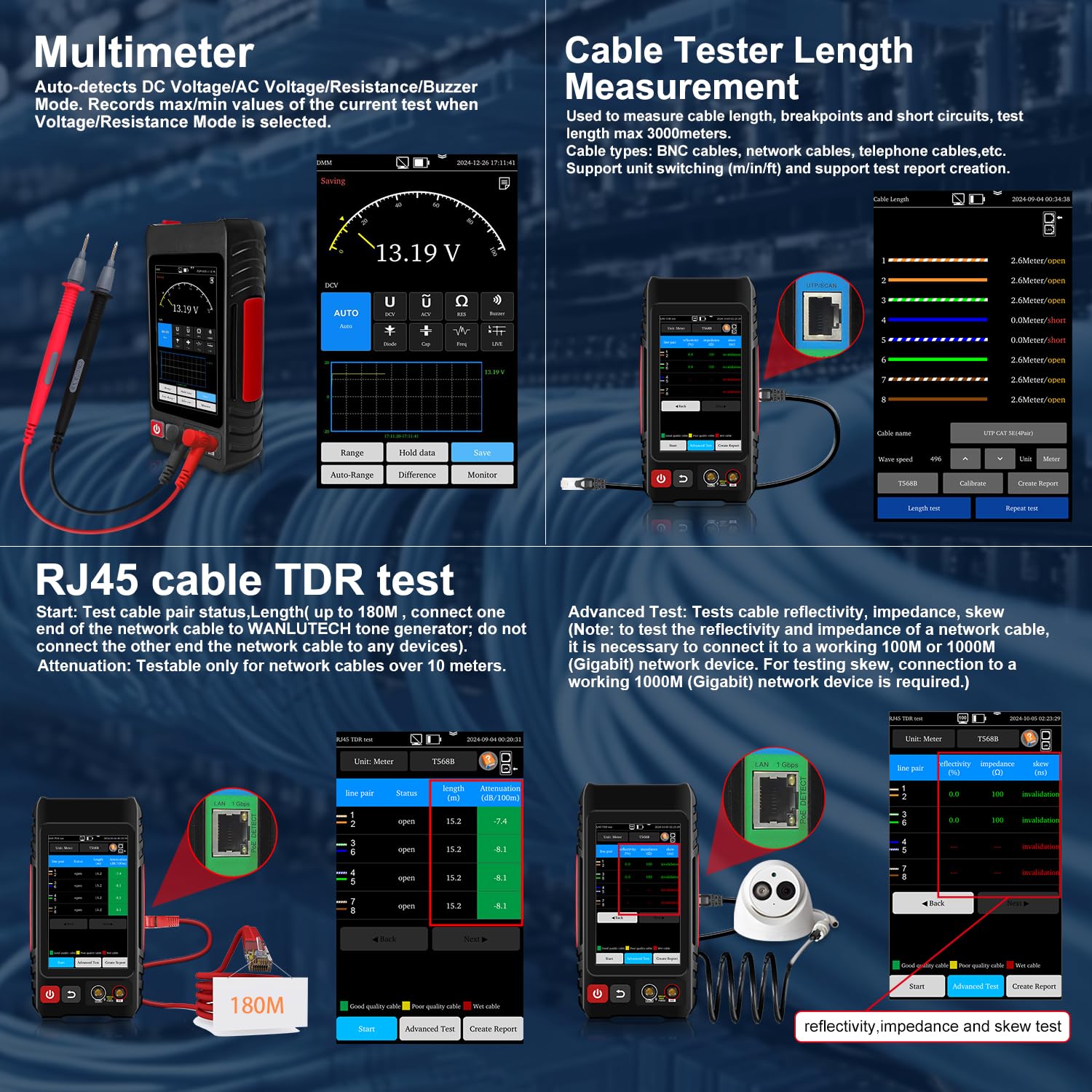

• [ OPM & VFL & DMM] WANLUTECH Rechargeable network cable tester has a 4'' IPS touchscreen. Built-in Digital Multimeter( DMM ), auto-detects DC Voltage/AC Voltage/Resistance/Buzzer Mode. Optical Power Meter( OPM ), support calibrated wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, power range -70~+6dBm). Visual Fault Locator (VFL), visible red light to detect fiber optic lines for breakage, cracking, bending and other faults. Wavelength 650nm

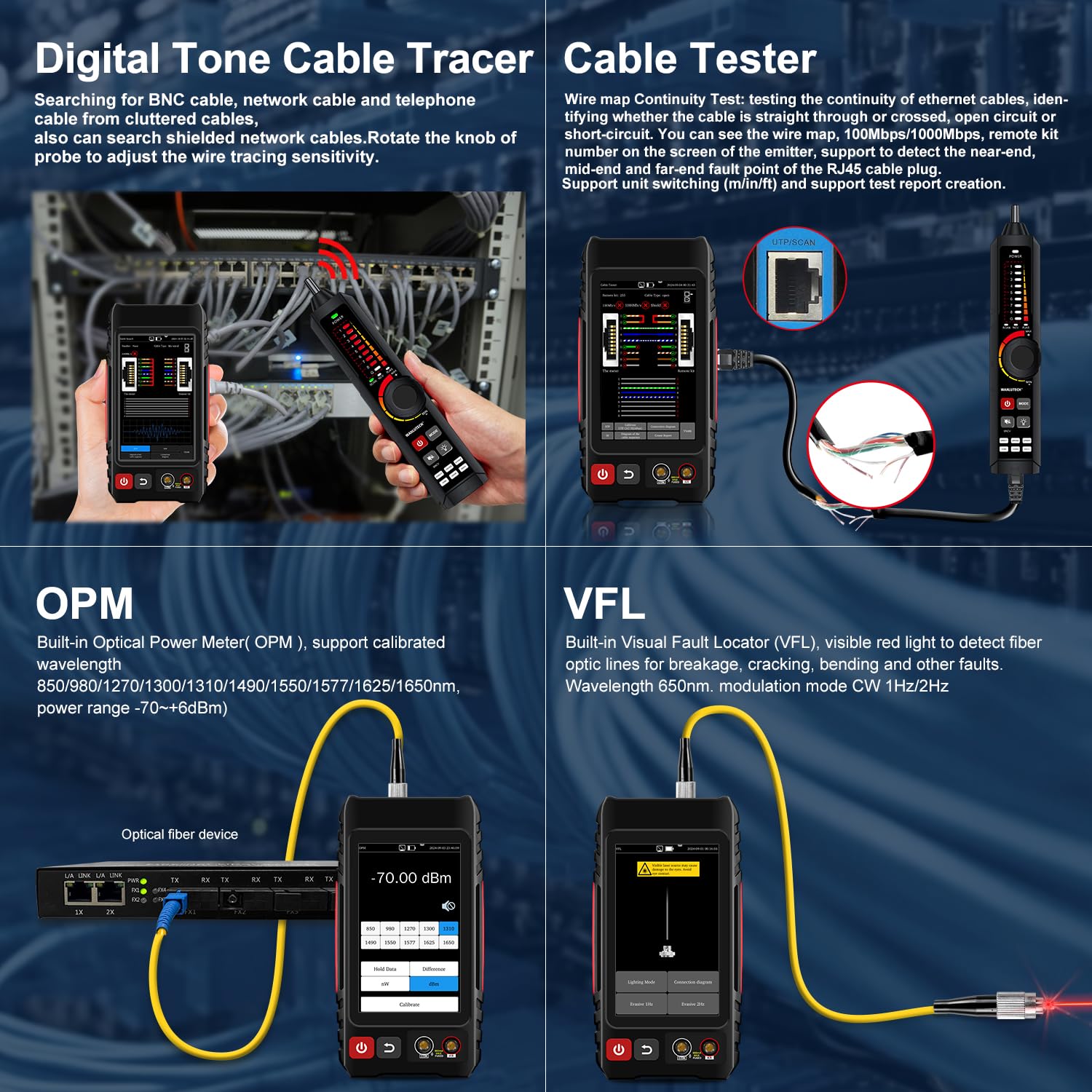

• [ Network Cable Tester ] WANLUTECH Digital Tone Cable Tracer: searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shielded network cables. Wire Map Continuity Test: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. Cable length measurement, used to measure cable length, breakpoints and short circuits, test length max 3000meters

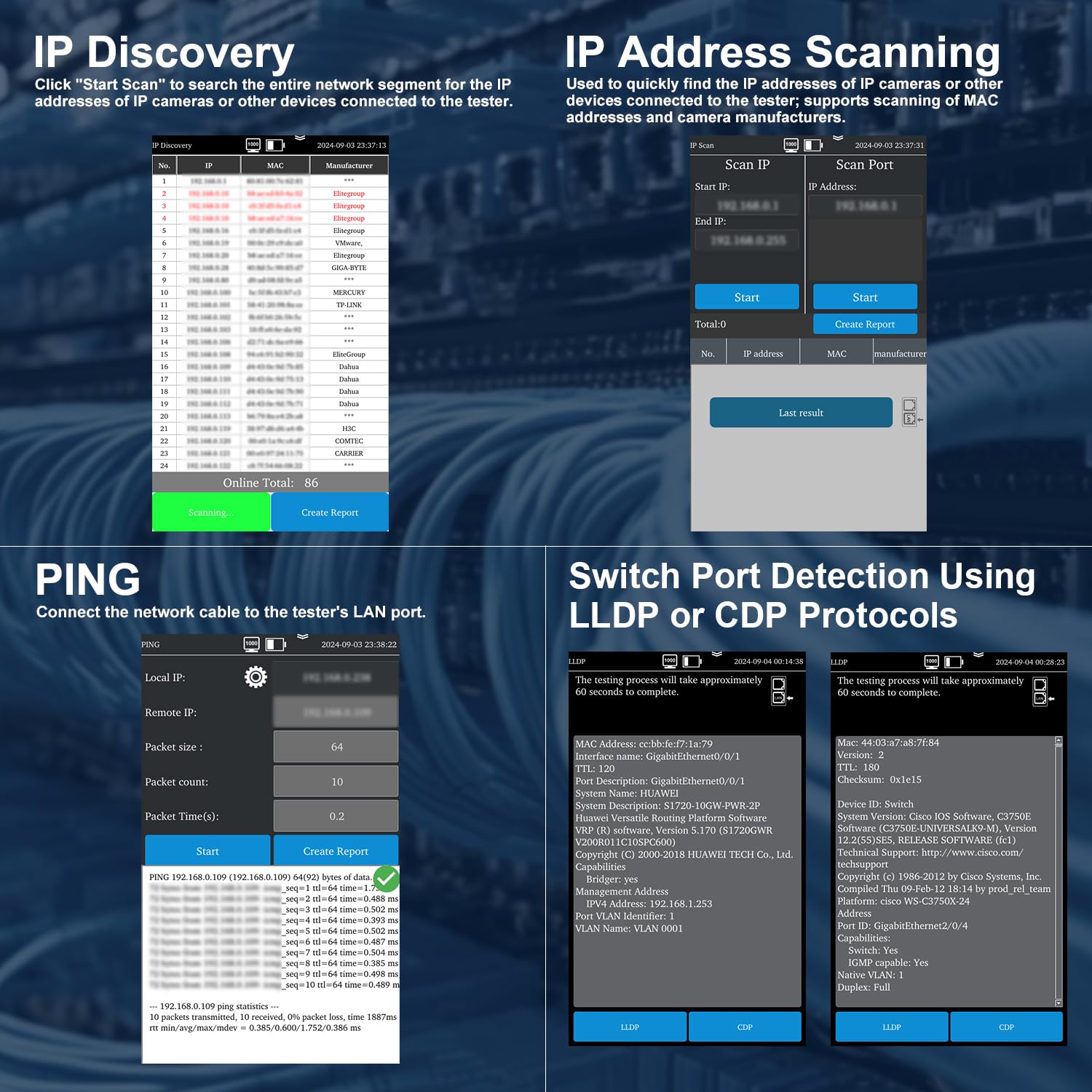

• [ PoE Checker & Network Testing Tool] It is used to detect whether the connected PoE Power Sourcing Equipment (PSE) is standard or non-standard PoE; supports standard IEEE 802.3af/at/bt detection. Multifunctional Network Testing Tools: Quick IP discovery, Ping test, IP scan, LLDP/CDP, Port flashing, etc

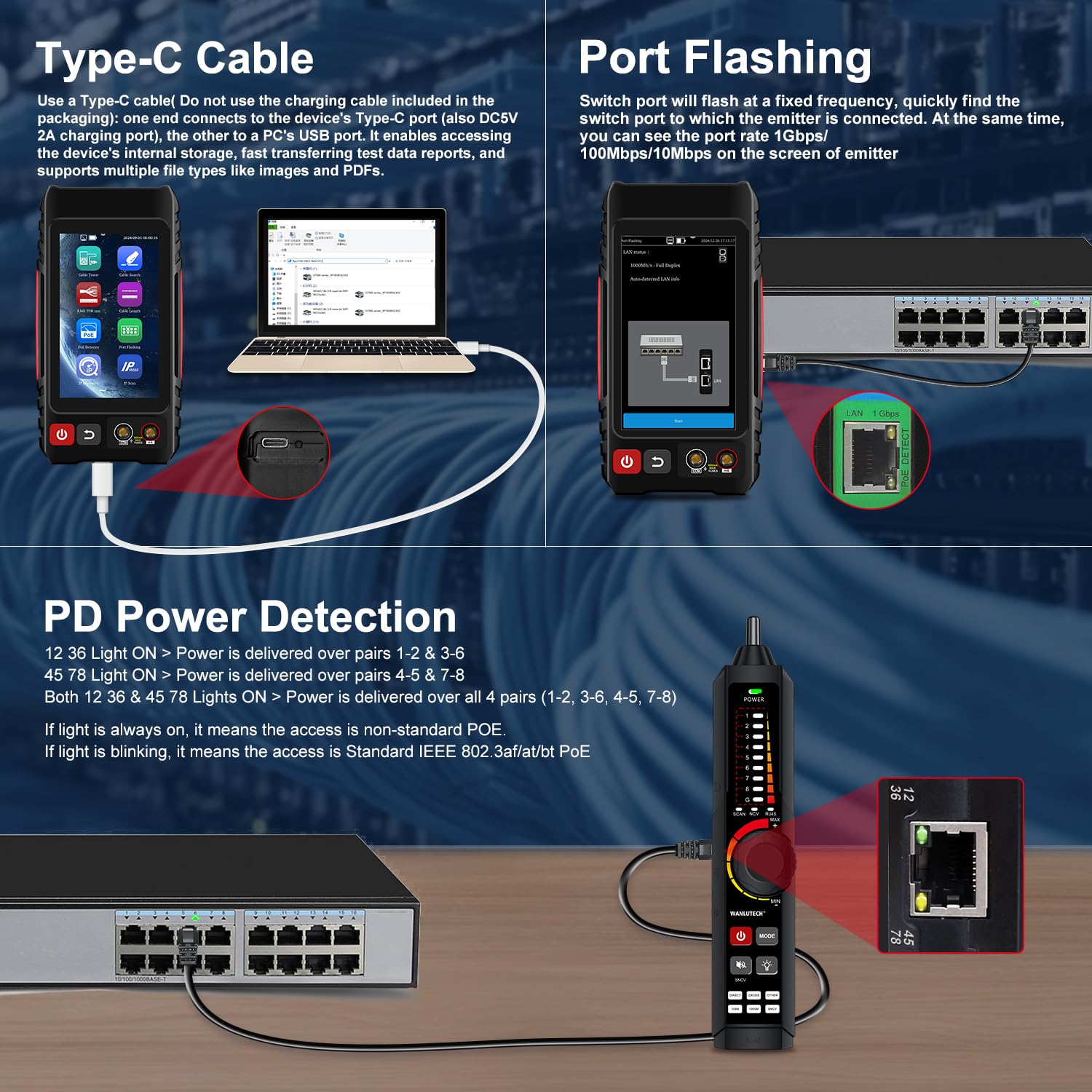

• [ Two File Transfer Methods ] 1. FTP Server: It enables exporting files (e.g., test reports) from WANLUTECH tester and copying update files to the tester's memory—no SD card or card reader required. 2. Use a Type-C cable( Do not use the charging cable included in the packaging): one end connects to the WANLUTECH tester's Type-C port (DC5V 2A charging port), the other to a PC's USB port
• [ Non-contact Voltage & PD Power Dectection ] When the tone probe detects AC voltage, the power-seeking indicator on the tone probe will flash and sound a beep alarm, while the 1-5 indicator on the tone probel flashes to indicate the current strength of signal. PD Power Dectection: It can detect if a PoE switch’s power output is standard or non-standard PoE, and identify the pins used for power supply
• We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
